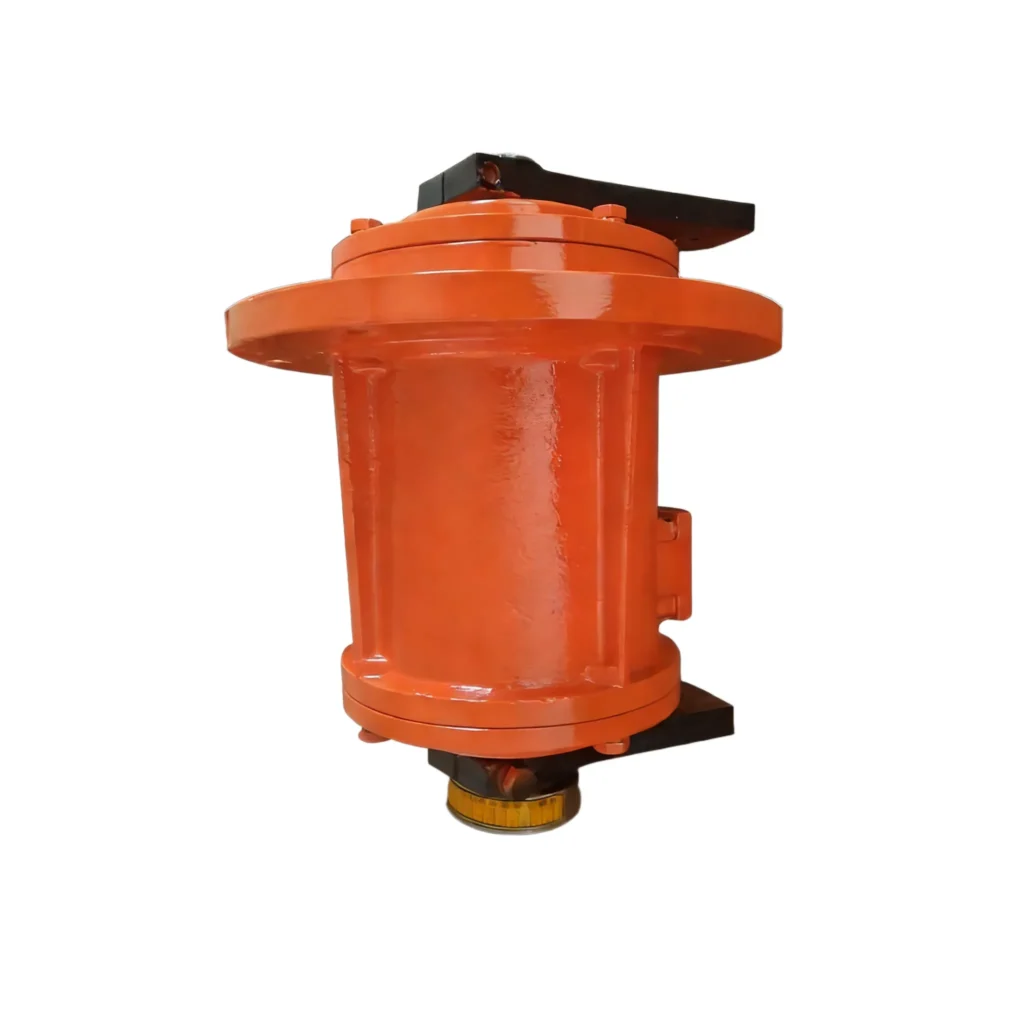

YZUL Series Vertical Vibration Motor
- Widely used in rotary vibrating screens, bowl feeders, vibrating sieves, and other precision vibration equipment.
- Available in multiple specifications with a wide range of centrifugal forces to meetdifferent application requirements.
- Adjustable eccentric angleallow precise control of vibration intensity for optimal
- Compatible with variable frequency drives (VFD) for flexible speed adjustment and efficient operation.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Application
Suitable for rotary vibrating screens, bowl feeders, vibrating sieves, and other precision screening equipment
Feature
Centrifugal force: 1 ~ 100 kN (adjustable on each model)
Available voltages from 220V to 660V
Windings impregnated with high-quality insulating materials
Adjustable eccentric angle for precise centrifugal force control
Advantage
Modular design for flexible customization
Multiple electrical configurations for global applications
Wide range of centrifugal forces for various applications
Options
2, 4, and 6 poles
Single-phase and three-phase versions
AC and DC versions available
Specifications
| Parameter | Value |
| Material | Ductile Cast Iron |
| Mounting Type | Vertical |
| Centrifugal Force | 1 – 100 kN |
| Voltage | 220V/380V/660V |
| Frequency | 50Hz/60Hz |
| Poles | 2/4/6 |
| Speed | 3000/1500/1000 rpm |
| Insulation Class | Class A/E/B/F/H |
| Protection Class | IP54-IP66 |
| Duty Type | S1(Continuous Duty) |
| Ambient Temperature | -20℃ to +40℃ |
*Choose the suitable specifications based on your requirements, and contact us for customized solutions.
