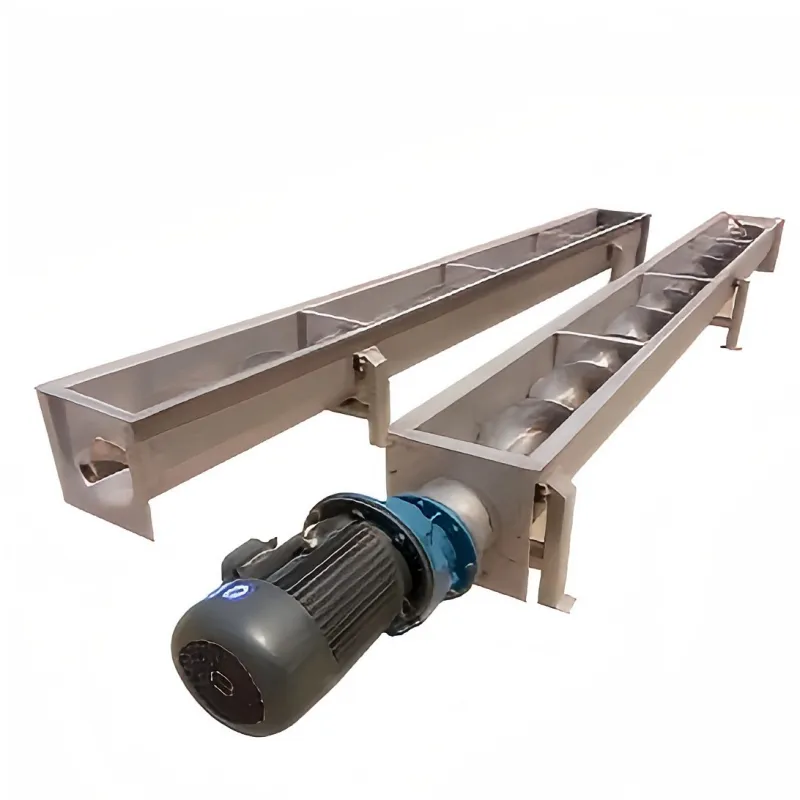

LS Series Screw Conveyor
- Designed for continuous and efficient conveying of powders, granules, and bulk materials.
- Screw conveying provides stable material flow and reliable horizontal or inclined transport.
- Compact structure requires minimal installation space and allows flexible system integration.
- Suitable for a wide range of material handling and conveying applications.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Application
Suitable for conveying cement, sand, minerals, coal, powders, granules, and other bulk materials.
Widely used in mining, aggregates, chemical, construction materials, and other industries.
Feature
Continuous screw conveying provides stable and uniform material flow.
Robust construction ensures reliable operation under demanding working conditions.
Flexible conveying configurations for different distances and installation requirements.
Sealed structure helps reduce dust leakage during material conveying.
Customized design available to meet specific capacity and process requirements.
Advantage
Compact design saves installation space.
Reliable conveying performance with continuous material flow.
Low maintenance requirements and long service life.
Flexible installation for horizontal or inclined conveying.
Easy integration with feeding, screening, and other material handling equipment.
Options
Customized conveyor length and diameter available.
Carbon steel and stainless steel construction options available.
Horizontal or inclined configurations available.
Various inlet and outlet configurations available.
Different screw designs available for specific material handling requirements.
Specifications
| Parameter | Value |
| Material | Stainless steel, Carbon steel |
| Mounting Type | Base-mounted,Suspended-mounted |
| Spiral Diameter | 100-1250 mm |
| Screw Distance | 100-630 mm |
| Rotation Speed | 13-140 r/min |
| Processing Capacity | 2.2-200 m³/h |
*Choose the suitable specifications based on your requirements,and contact us for customized solutions
