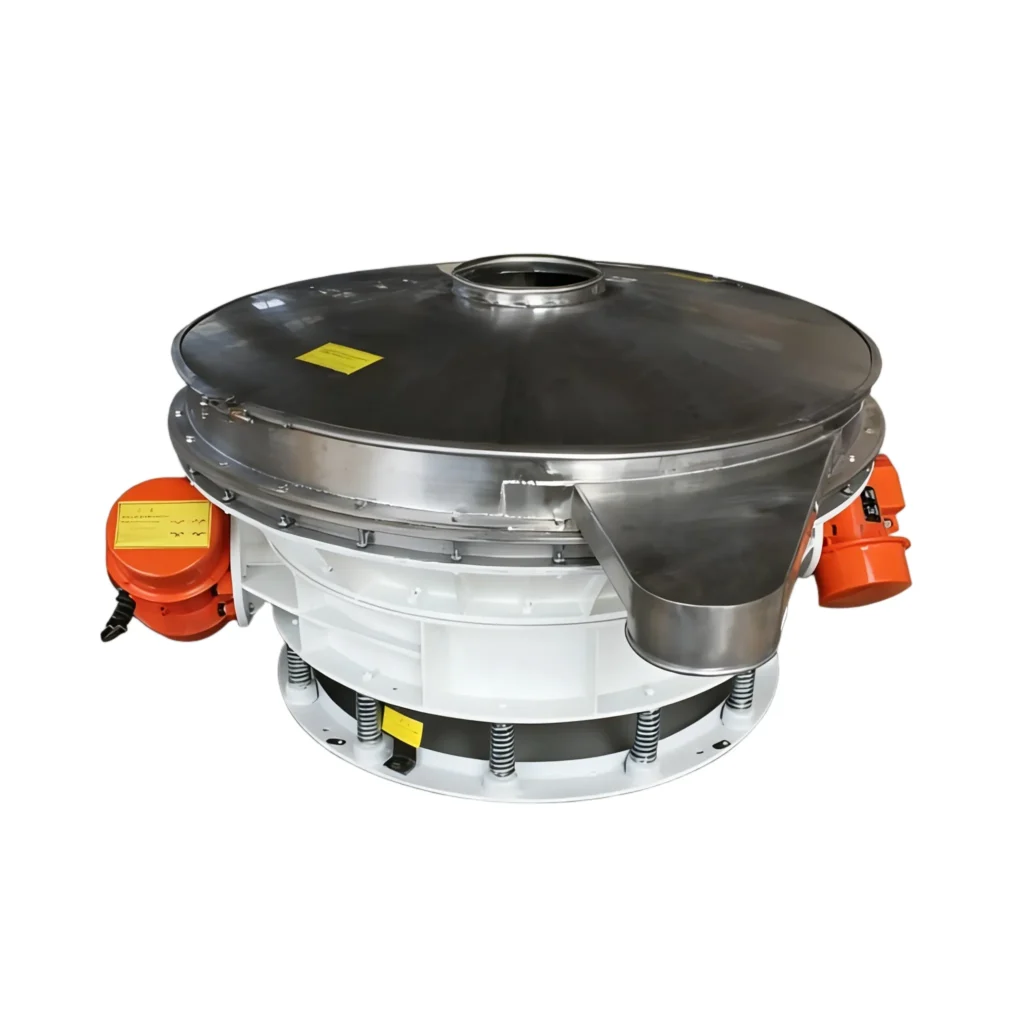

ZPS Series Direct-Discharge Screen
- Designed for continuous removal of oversized particles and impurities from powders and granular materials.
- Direct-discharge design enables rapid material flow and efficient impurity removal.
- Compact structure provides efficient operation while minimizing installation space.
- Suitable for applications requiring continuous filtration and impurity removal.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Application
Mainly used for removing oversized particles, foreign matter, and impurities from powders and granular materials.
Widely used in food, chemical, pharmaceutical, plastics, and other industries.
Feature
Direct-discharge design enables continuous material flow and impurity removal.
High-frequency vibration improves filtration efficiency and prevents material accumulation.
Compact structure simplifies installation and maintenance.
Quick screen replacement facilitates cleaning and routine operation.
Customized design available for different material and process requirements.
Advantage
Efficient removal of impurities with minimal material retention.
Continuous operation improves production efficiency.
Compact design saves installation space.
Suitable for a wide range of powder and granular materials.
Options
Customized machine dimensions available.
Stainless steel, carbon steel, and other material options available.
Various screen mesh sizes available for different filtration requirements.
Different feeding and discharge configurations available.
Base-mounted or mobile configurations available.
Specifications
| Parameter | Value |
| Material | Stainless steel, Carbon steel |
| Mounting Type | Base-mounted,Mobile configurations |
| Screen Diameter | 580-1460 mm |
| Screen Area | 0.26-1.67 m² |
| Layer | 1-2 |
| Power | 0.18-1.5 kW |
*Choose the suitable specifications based on your requirements,and contact us for customized solutions
